Mounting Bracket

Mounting Bracket

Removing

- Remove front door trim..






2-door Vehicles

- On a 2-door vehicle, remove just the cover. Refer to => [ Cover, 2-Door Vehicle ] Cover, 2-Door Vehicle.

4-door Vehicles

- On a 4-door vehicle, remove the subframe. Refer to => [ Subframe ] Subframe.

All vehicles

- Remove the door handle. Refer to => [ Door Handle ] Front Door Handle.

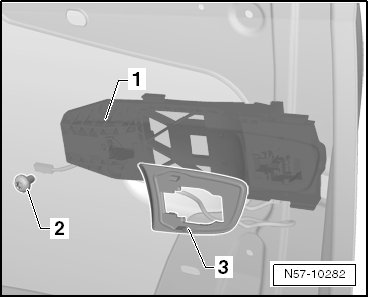

- Remove the bolt - 2 -.

- Remove the seal - 3 -.

- Remove the bracket - 1 - from the door.

Installation

- Install the bracket - 1 - in the door.






- Insert the seal - 3 -.

- Tighten the screw - 2 -, tightening specification: 1 Nm.

Further installation is in reverse order of removal.
