Front Door Handle

Door Handle

• Removing and installing the right door handle is described here. Removing and installing the left door handle is identical.

Removing

- Remove the lock cylinder housing, refer to => [ Lock Cylinder ] Lock Cylinder.

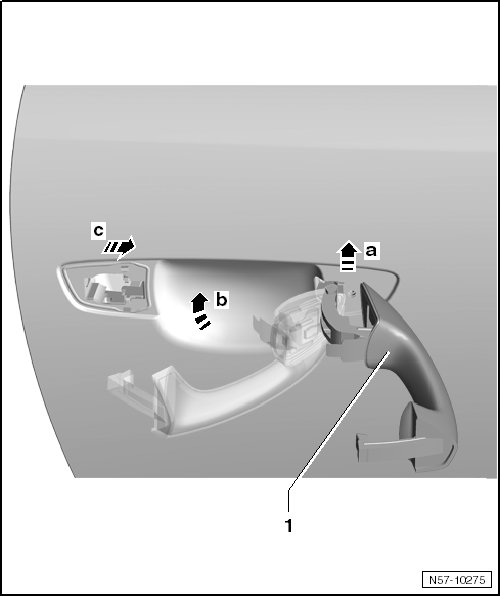

- Pull door handle - 1 - slightly toward rear - arrow a - out of mount of mounting bracket.

- Swivel door handle around in - direction of arrow b -.

- Remove the door handle at right angle - arrow a - from the bracket - 2 -.

Installation

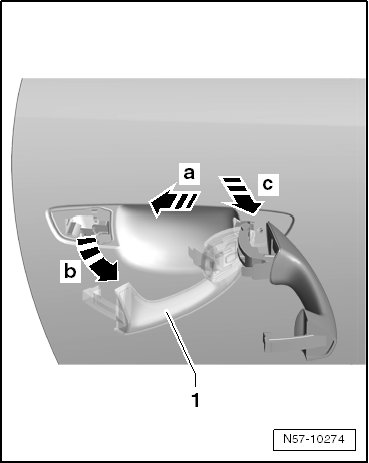

- Install the door handle - 1 - into the bracket at right angle - arrow a -.

- Swing door handle - 1 - into door - arrow b -.

- Slide the door handle toward front - arrow c - into the mount inside the bracket.

Install the lock cylinder housing.

• Then, always perform a function test with door opened.
