02Q Manual Transmission

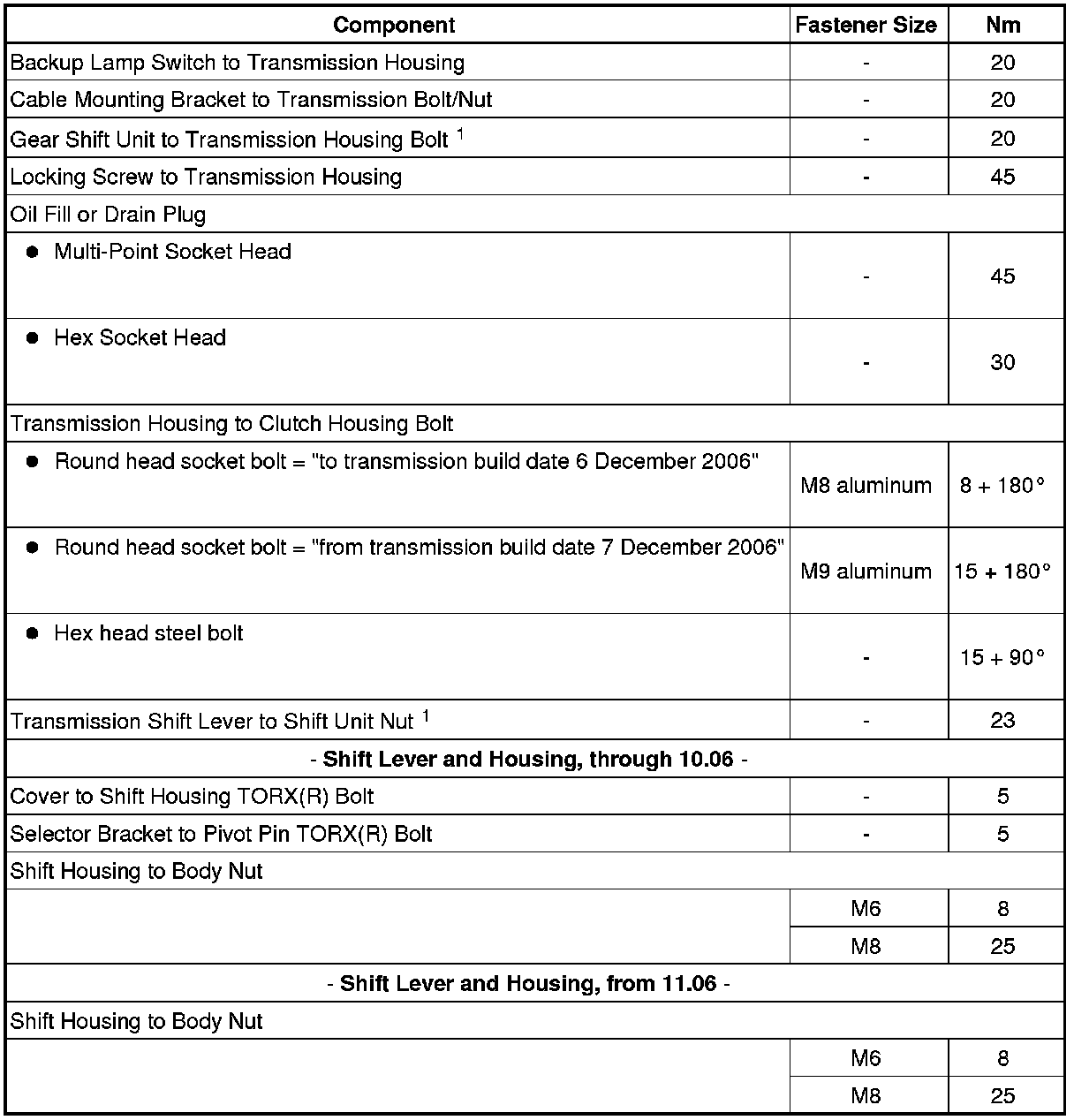

Fastener Tightening Specifications

Golf/GTI (from 2010) with a Diesel Engine => [ Tightening Specifications ]

Golf/GTI (from 2010) with a Gas Engine=> [ Tightening Specifications ]







• 1 Always replace


Golf/GTI (from 2010) with a Diesel Engine

Tightening Specifications

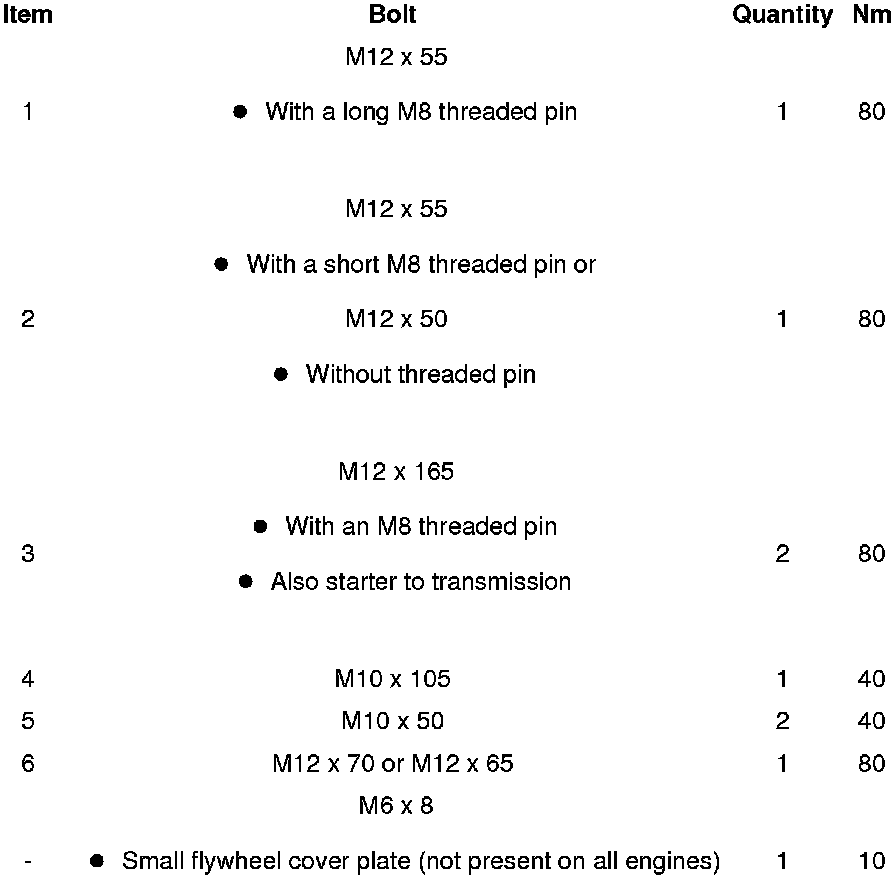

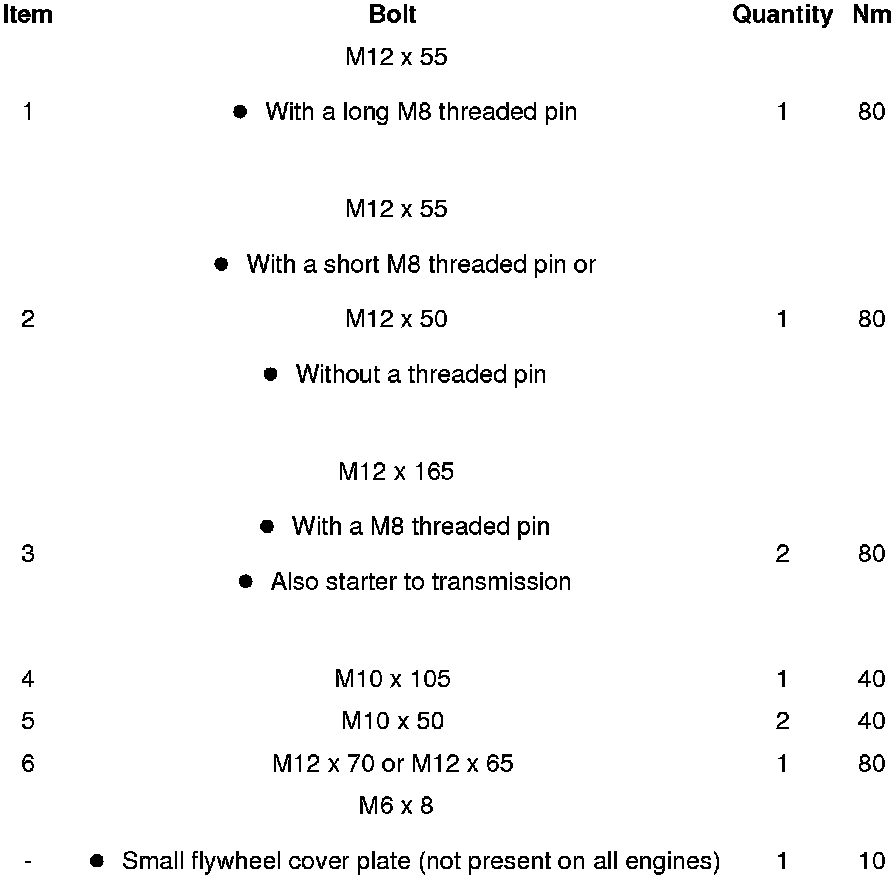

Transmission to Engine











- A -: Alignment sleeve for centering

Transmission Mount Bracket to Transmission






- Replace the transmission mount bracket - 1 - to transmission bolts - arrows -.

Tightening specifications: 60 Nm + an additional 90° (1/4) turn

Transmission Mount to Transmission Mount Bracket






- Replace the transmission mount - 2 - to transmission mount bracket bolts - arrows -.

Tightening specification: 60 Nm + an additional 90° turn

• Install the engine and transmission mounts free of tension.


Golf/GTI (from 2010) with a Gas Engine

Tightening Specifications

Transmission to Engine











- A -: Alignment sleeve for centering

Transmission Mount Bracket to Transmission






- Replace the transmission mount bracket - 1 - to transmission bolts - arrows -.

Tightening specification: 60 Nm + an additional 90° (1/4) turn

Transmission Mount to Transmission Mount Bracket






- Replace the transmission mount - 2 - to transmission mount bracket bolts - arrows -.

Tightening specifications: 60 Nm + an additional 90° (1/4) turn

• Install the engine and transmission mounts free of tension.
