Procedures

New Door Hinge, Lubricating

• Lubricate the new door hinge after the painting is completed.

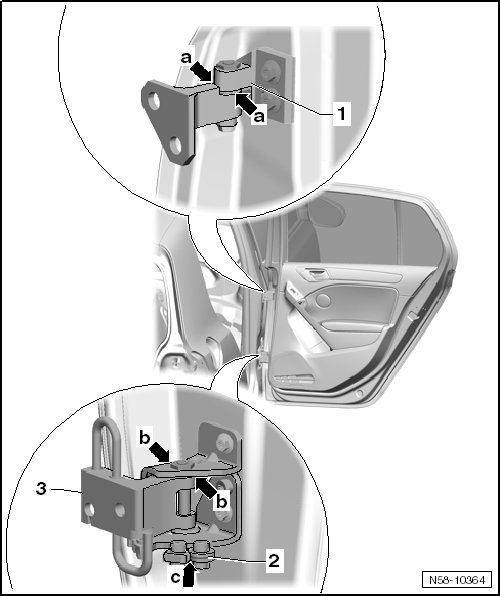

- Lubricate the upper door hinge - 1 - with Grease (G 000 150) all the way around - arrows a - on the pin and hole.

- Lubricate the lower door hinge - 3 - with Grease (G 000 150) all the way around - arrows b - on the pin and hole.

- Lubricate the door check torsion spring - 2 - on the lower hinge with Grease (G 000 150) - arrows c -.
