FM Frequency Filter

FM Frequency Filter

• Removal and installation of left or right side speakers is identical.

Removing

Perform the following steps before starting:

- Switch off ignition, switch off all electrical consumers and remove ignition key.

It is necessary to remove the rear lid trim panel first in order to be able to remove the frequency filter.

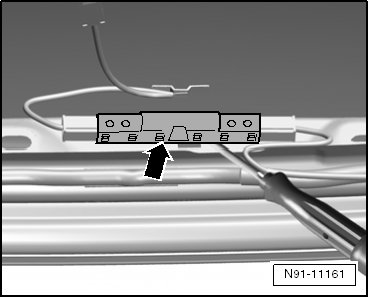

- Disconnect the connectors on the frequency filter.

Mounting - arrow - on the frequency filter

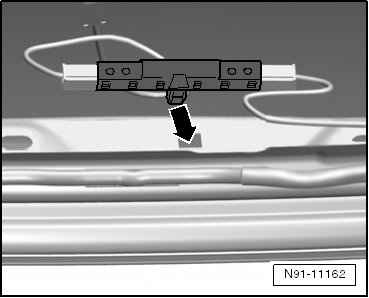

- Carefully pry out the frequency filter with a screwdriver - arrow -.






Installing

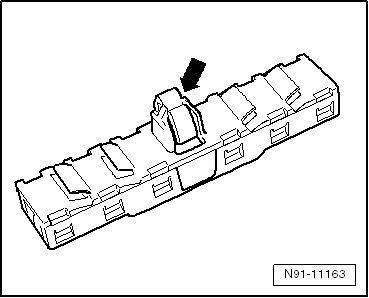

- Push the frequency filter into the opening - arrow - until it engages.






Further installation is in the reverse sequence to removal.
