Fresh Air/Recirculating Air/Back Pressure Door Motor (V425)

Fresh Air/Recirculating Air/Back Pressure Door Motor (V425)

Special tools, testers and auxiliary items required

• Vehicle Diagnostic Tester or newer model.

Removing

- Turn off all electric consumers.

- Switch off the ignition.

- Remove the key.

- Remove the glove compartment.

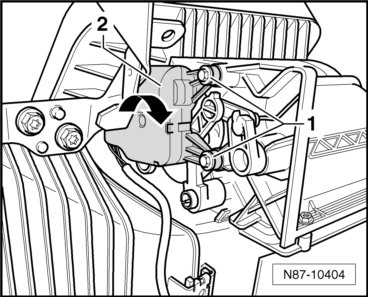

- Remove the bolts - 1 - (1.4 Nm).






- Turn the fresh air/recirculating air/back pressure door motor - 2 - approximately 15° in - direction of arrow - and then pull it off the air intake housing.

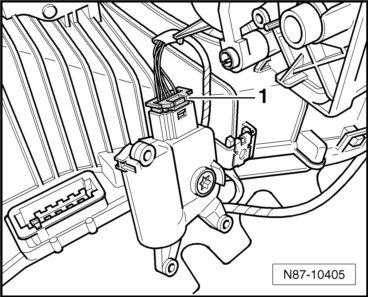

- Disconnect the connector - 1 - from the fresh air/recirculating air/back pressure door motor.






• Position of air flow door must not be changed.

Installing

Install in reverse order of removal. When doing this, note the following:

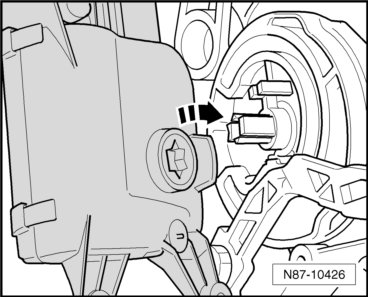

The fresh air/recirculating air/back pressure door motor fits in only one position on the curved washer.






- After installing, check the function of the back pressure and recirculation door. Initiate the "basic setting" using the vehicle diagnostic tester.
