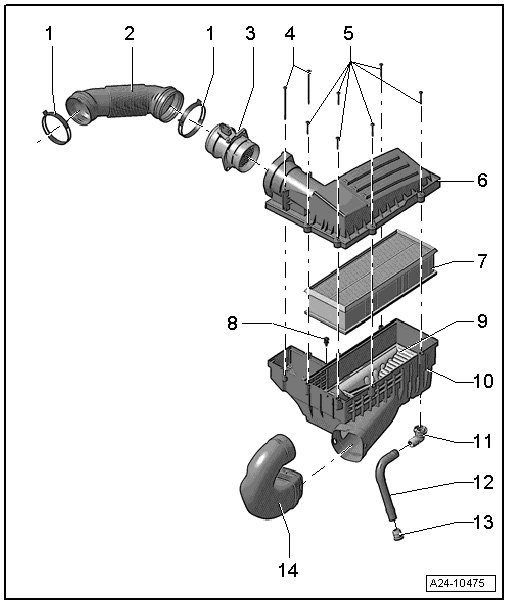

Air Filter Housing Overview

Air Filter Housing Overview






1 Spring Clamp

2 Connecting Pipe

• To the turbocharger.

• Check the connecting pipe for dirt and leaves.

3 Mass Airflow Sensor (G70)

• Removing and installing, refer to => [ Mass Airflow Sensor G70 ] .

4 Bolt

• 1.5 Nm

• For the upper air filter housing.

5 Bolt

• 1.5 Nm

• For the upper air filter housing.

6 Upper Air Filter Housing

• Clean any salt, dirt and leaves from the upper air filter housing.

7 Air Filter Element

• Always use an original equipment air filter element.

• Removing and installing, refer to => [ Air Filter Element ] .

• Note the change intervals.

8 Bolt

• 8 Nm

• For the lower air filter housing.

9 Snow Screen

• Not installed on all vehicles.

10 Lower Air Filter Housing

• Clean any salt, dirt and leaves from the lower air filter housing.

11 Water Drain Hose Connection

• Clean the connection.

12 Water Drain Hose

• Clean the water drain hose.

13 Shutter Valve

14 Intake Air Duct

• To the lock carrier.

• Clean any dirt and leaves from intake air duct.
