Radiator

Radiator

Removing

- Drain the coolant. Refer to => [ Coolant, Draining and Filling ] Service and Repair.

- Remove the fan shroud. Refer to => [ Fan Shroud ] Fan Shroud.

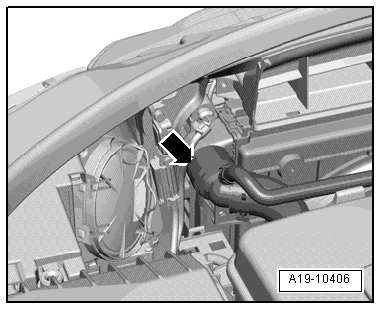

- Remove the upper coolant hose - arrow - from the radiator.

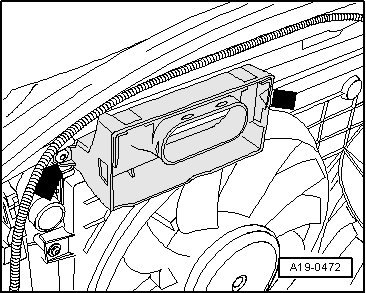

- Remove the air duct bolts - arrows - from the lock carrier and remove the air duct.






- With engine code CBFA, disconnect the connector for the radiator identification sensor.

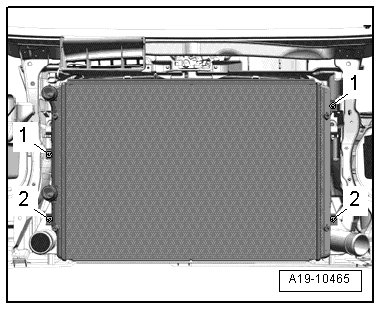

- Remove the bolts - 1 and 2 - and remove the radiator upward.






Installing

Install in the reverse order of removal.

• Tightening specifications, refer to => [ Radiator, Fan Shroud and Fan Overview ] Radiator, Fan Shroud and Fan Overview.
