Diagram 27/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio/Navigation Display Control Module, Antennas, Heated Rear Window, Antenna Modules, AM and FM Frequency Filter





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

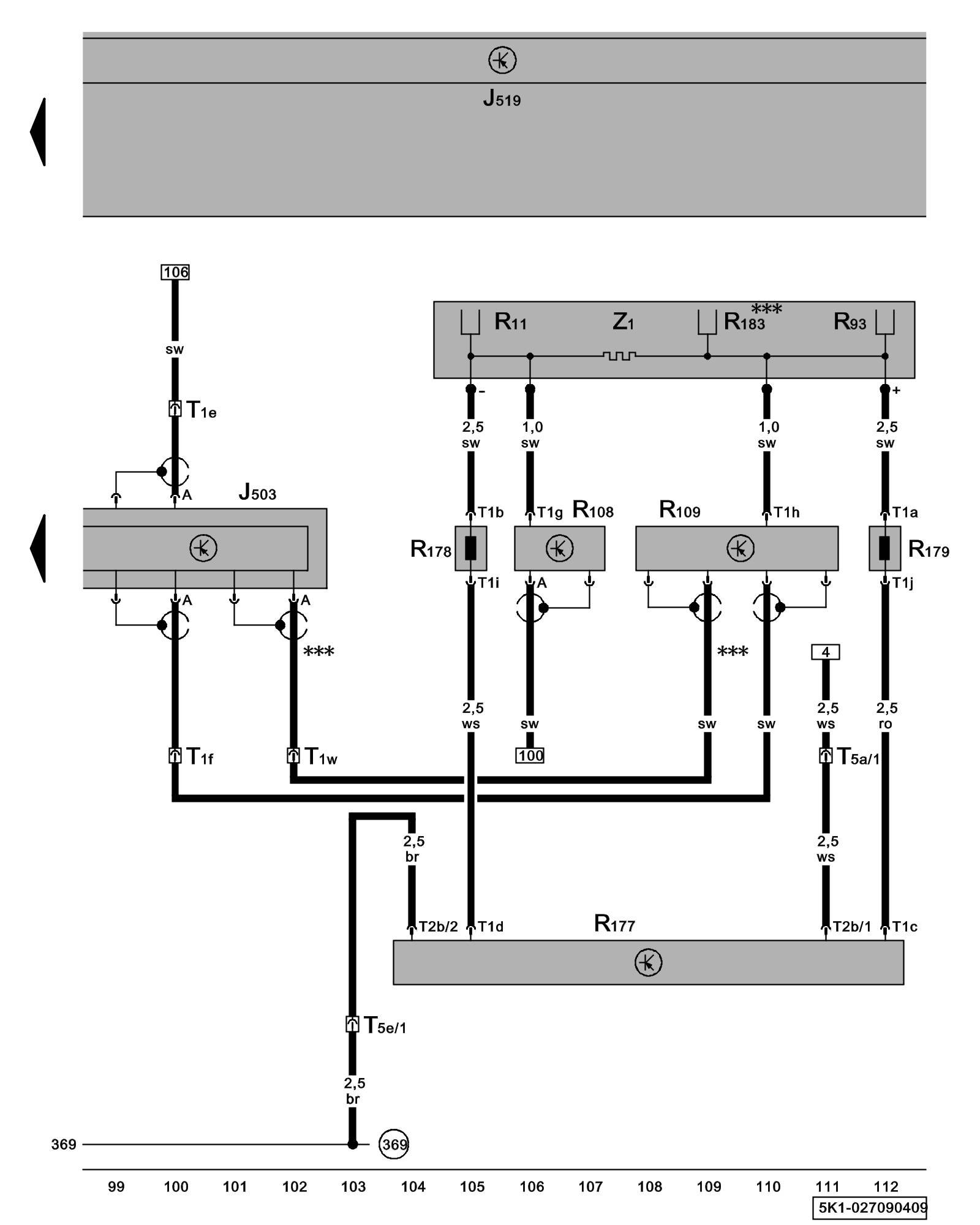

J503 - Radio/Navigation Display Control Module
Locations

J519 - Vehicle Electrical System Control Module Control modules in front part of vehicle - Overview of Control Modules

R - Radio
Locations

R11 - Antenna

R93 - Radio Antenna 2

R108 - Left Antenna Module
Locations

R109 - Right Antenna Module
Locations

R177 - AM Frequency Filter, in rear lid
Locations

R178 - FM Frequency Filter (in negative wire)
Locations

R179 - FM Frequency Filter (in positive wire)
Locations

R183 - Digital Radio Antenna

T1a - Single Connector

T1b - Single Connector

T1c - Single Connector

T1d - Single Connector

T1e - Single Connector, behind right C-pillar trim Overview of connector stations and connectors

T1f - Single Connector, behind right C-pillar trim Overview of connector stations and connectors

T1g - Single Connector

T1h - Single Connector

T1i - Single Connector

T1j - Single Connector

T1w - Single Connector, behind right C-pillar trim

T2b - Double Connector

T5a - 5-Pin Connector, black, in left rear side panel Overview of connector stations and connectors

T5e - 5-Pin Connector, pink, in left rear side panel Overview of connector stations and connectors

Z1 - Heated Rear Window

(369) - Ground Connection 4 (in main wiring harness)

*** - Only Digital Radio Antenna

Previous Diagram 27/8 (Tracks 85-98)
