Air Distribution Door Motor -V428- / Air Distribution Door Motor Position Sensor -G645-






Climate/ Climatronic Systems - Connector Views

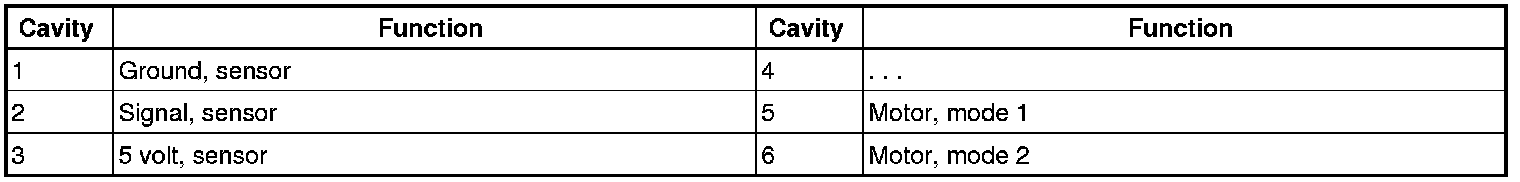

Air distribution door motor -V428- / Air distribution door motor position sensor -G645-
