• In order to correct the installation position of the headlamp, front bumper must not be removed.

• Illustrations depict left headlamp.

When checking installation position of headlamp, determine that headlamp has no uneven gap dimensions to body, otherwise installation position must be corrected.

- Switch off ignition, switch off all electrical consumers and remove ignition key.

- Remove the radiator grille.

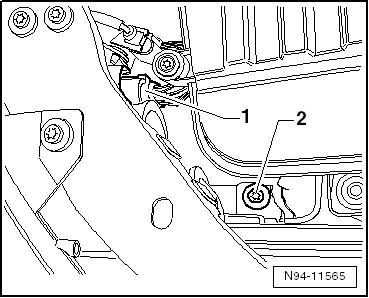

- Loosen the screw - 2 - on back of the headlamp.

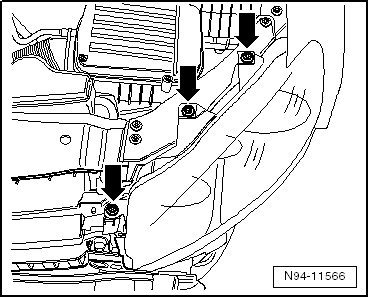

- Loosen the three screws - arrows -.

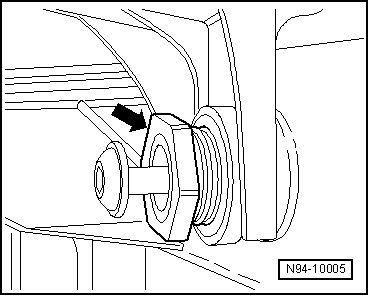

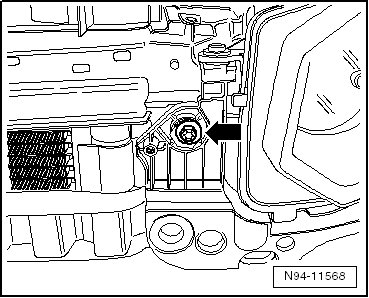

- Loosen the mounting bolt - arrow - at the bottom of the headlamp.






- Adjust the screws so they are flush to the body by rotating the adjustment bushings in or out - arrow - on the headlamp.






- Tighten the threaded connections to the specification given in the overview. Refer to=> [ Halogen Headlamps Overview ] Halogen Headlamps Overview.

- Check and if necessary correct installation position of headlamp again for uniform gap dimension.

- Install the radiator grille.

- Check headlamp for function.

• If a headlamp is removed or adapted to the body, it must always be adjusted after installing or after adapting.

- Check the headlamp setting and adjust if necessary.
