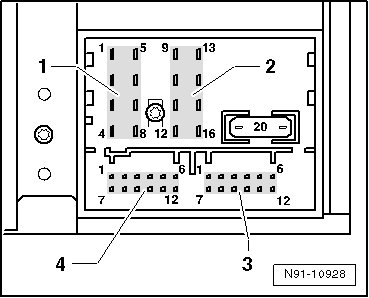

8-Pin Connector 2, Voltage Supply Wires and CAN Bus

8-Pin Connector 2, Voltage Supply Wires and CAN Bus






9 CAN-Bus High
10 CAN-Bus Low
11 BOSE pin
12 Voltage supply, negative, terminal 31
13 not used
14 not used
15 Voltage supply, positive, terminal 30
16 Control signal, Antitheft protection, SAFE, positive
