Air Filter Housing

Air Filter Housing

Removing

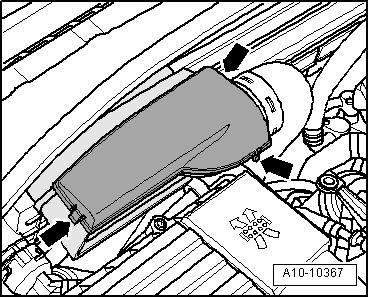

- Release the tabs - arrows - and remove the cover from the intake air duct.

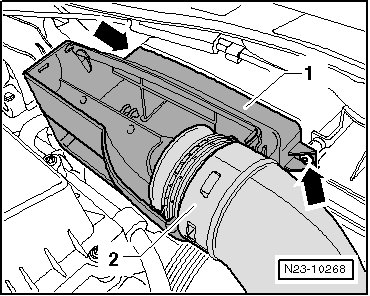

- Remove the bolts - arrows - for the intake air duct - 1 - and pull the intake air duct - 2 - from the lock carrier.

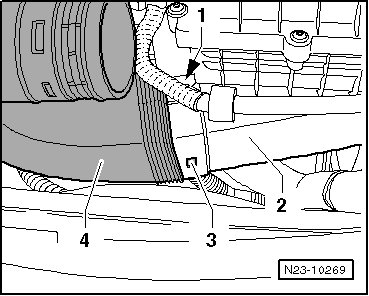

- Press the tabs - 1 and 3 - and remove the hose- 4 - from the air filter housing - 2 -.

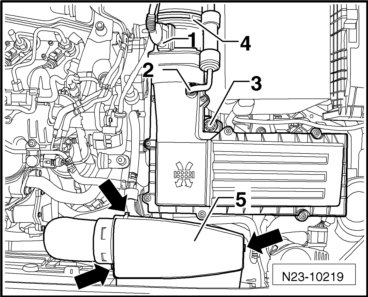

- Disconnect the connector from the Mass Airflow (MAF) sensor - 1 - and the vacuum line - 2 -.

- Loosen the bolt - 3 - on the air filter housing.






- Open the clamp - 4 - and remove the intake hose to the adapter.






- Remove the entire air filter housing.

Installing

Install in the reverse order of removal.
